USM Haller
- Year
- 2025
- Category
- Geometry Nodes · Tool
- Type
- Personal tool
- Built with
- Blender Geometry Nodes
One node group, every configuration. A procedural setup that builds the USM Haller system from a handful of parameters - made to take the repetitive part out of product visualization.
Configure, don't model.

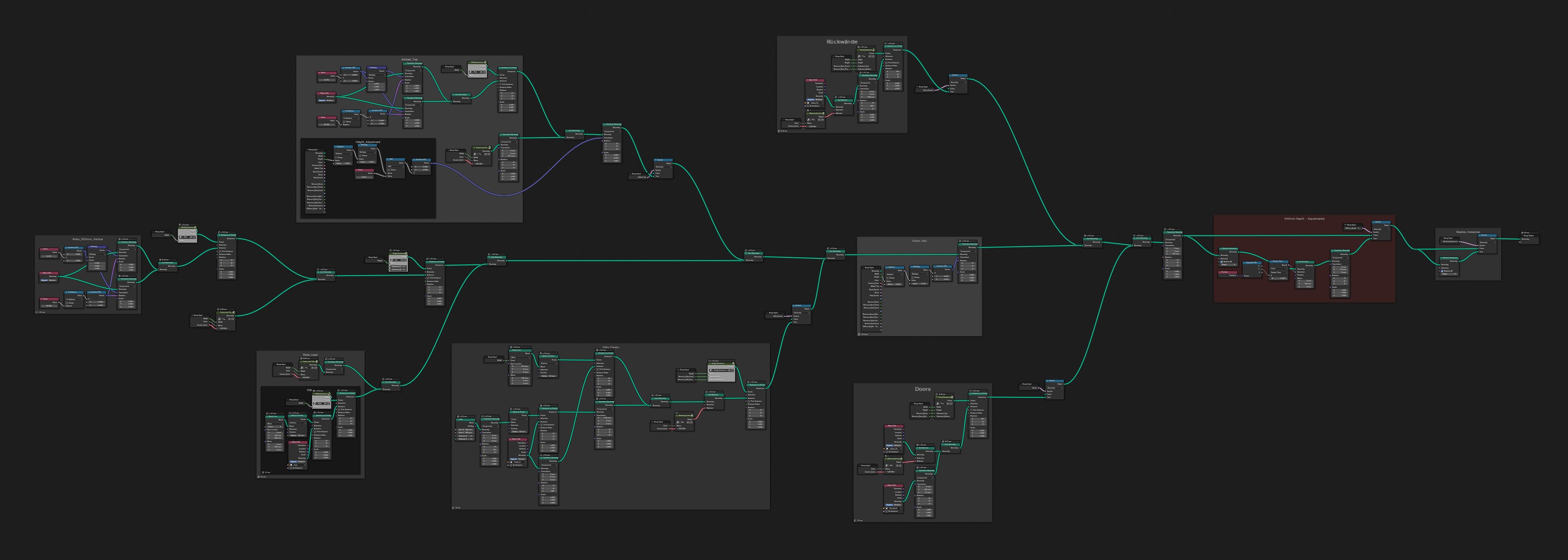

Modeling a modular furniture system by hand means rebuilding the same tubes, connectors and panels over and over. Instead, the whole system lives in one Geometry Nodes setup.
Width and height are set in modules, the rest follows: frame, connectors, panels and doors are placed automatically.
Everything in one panel.

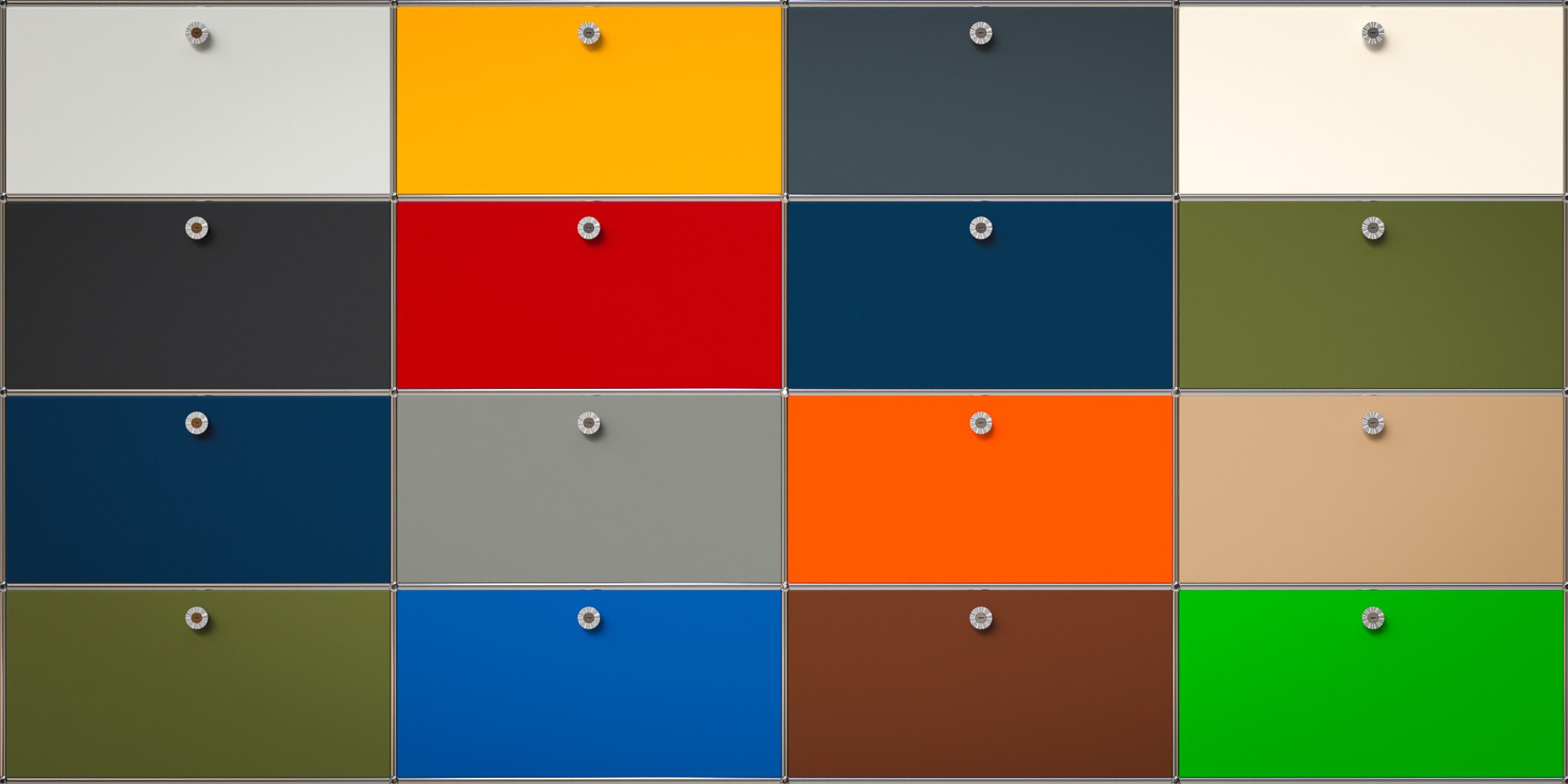

All options sit in a single modifier panel: width and height, one of the 14 original colours or a custom one, and toggles for doors, back panels and side panels.

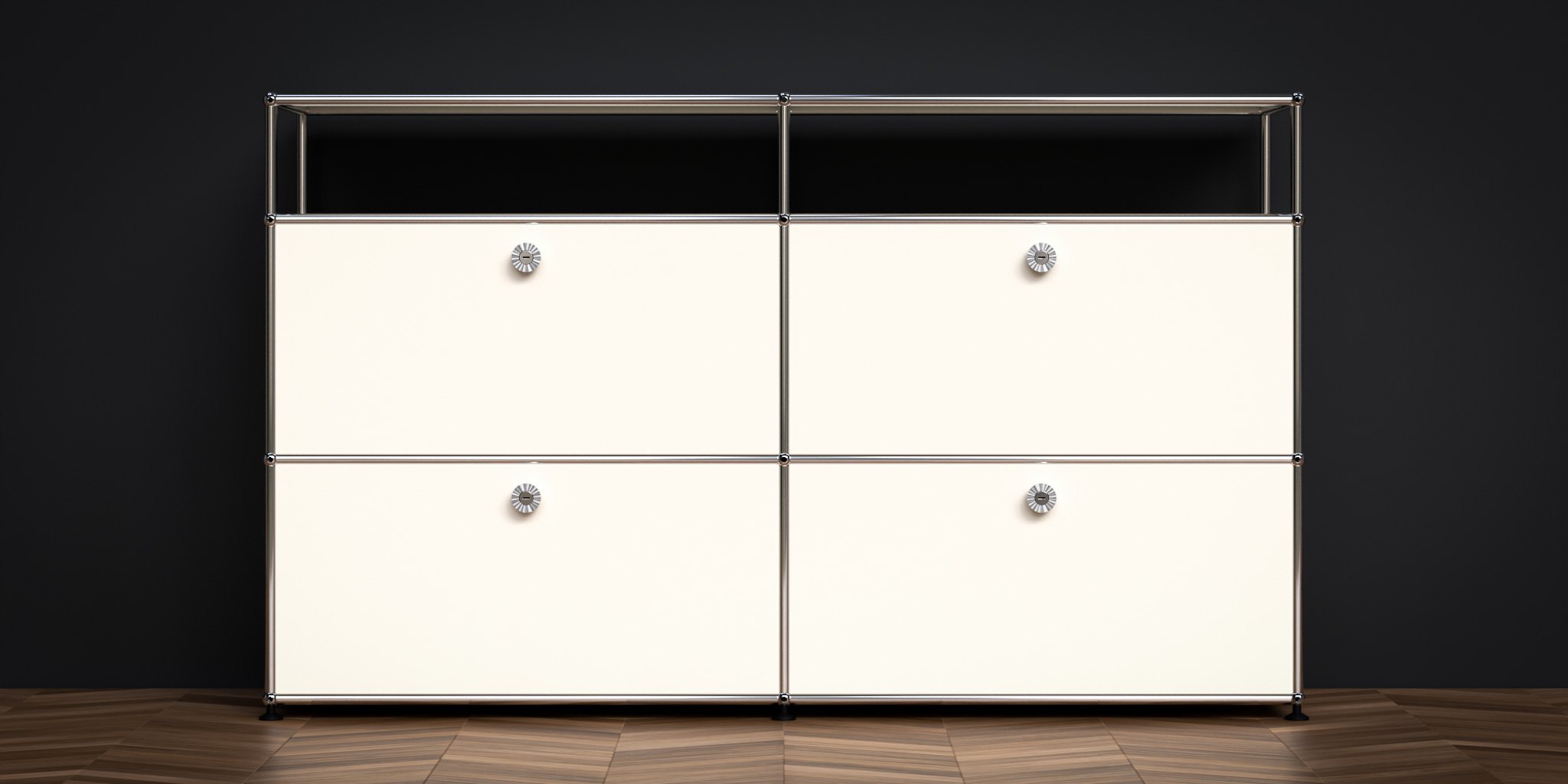

Individual rows can be opened up from the top or the bottom - turning a closed sideboard into shelves in a few clicks.
Details that hold up.

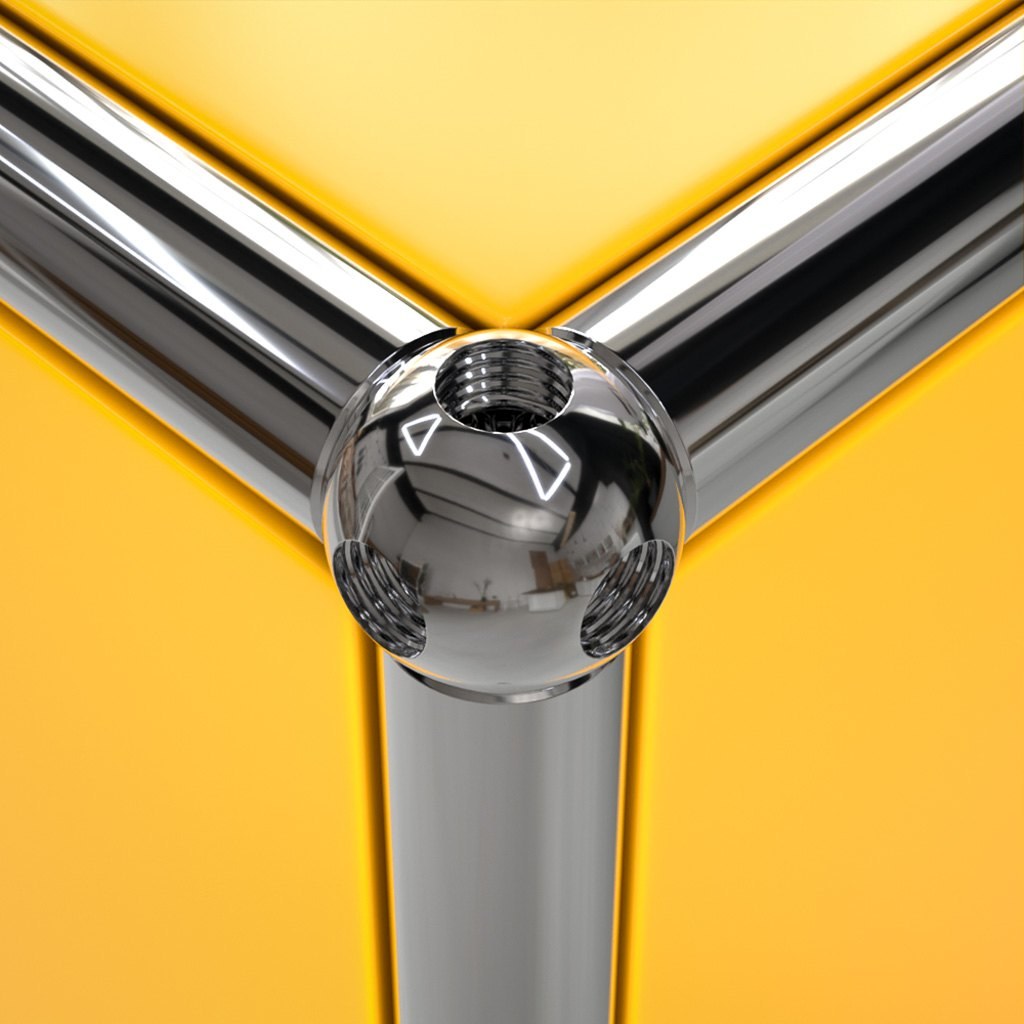

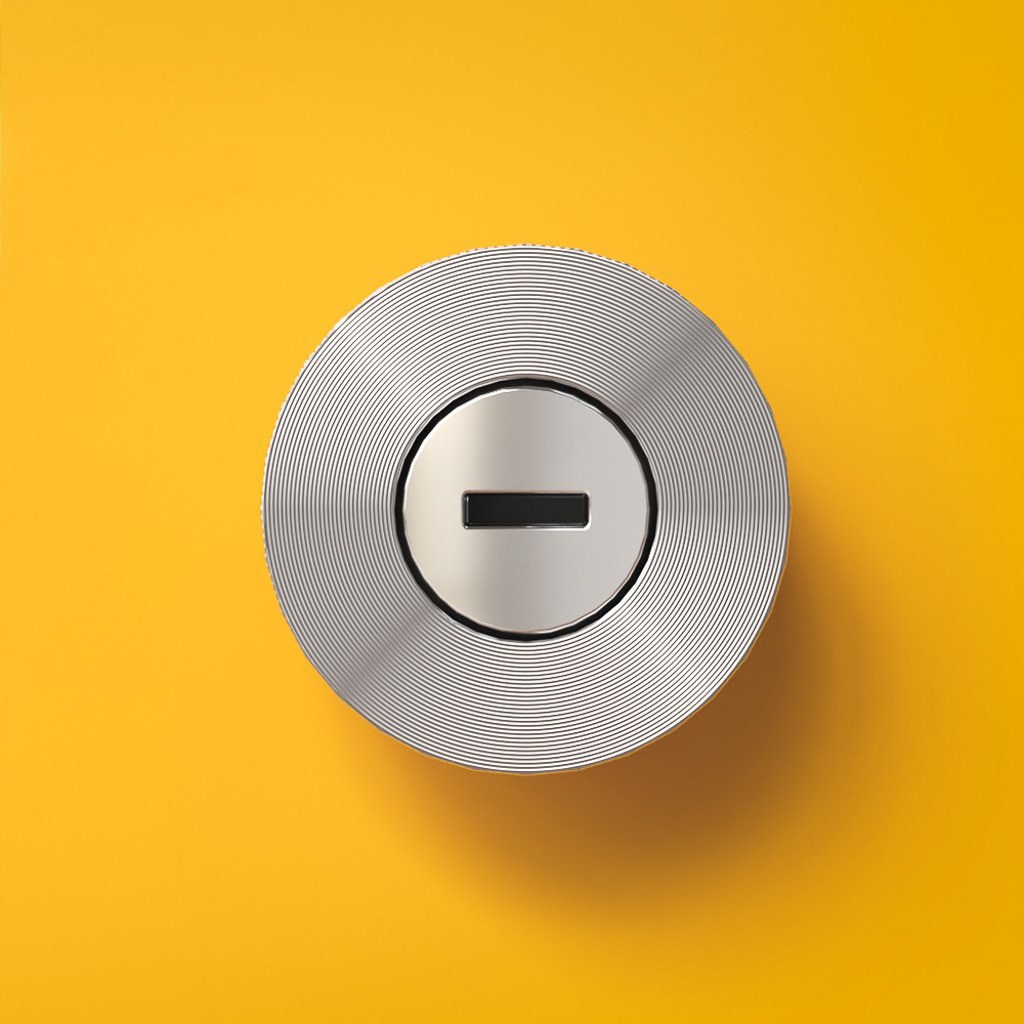

Procedural does not mean simplified. The chrome tubes, the ball connectors and the door locks are modeled to survive a close-up - so every configuration is ready for the final render.

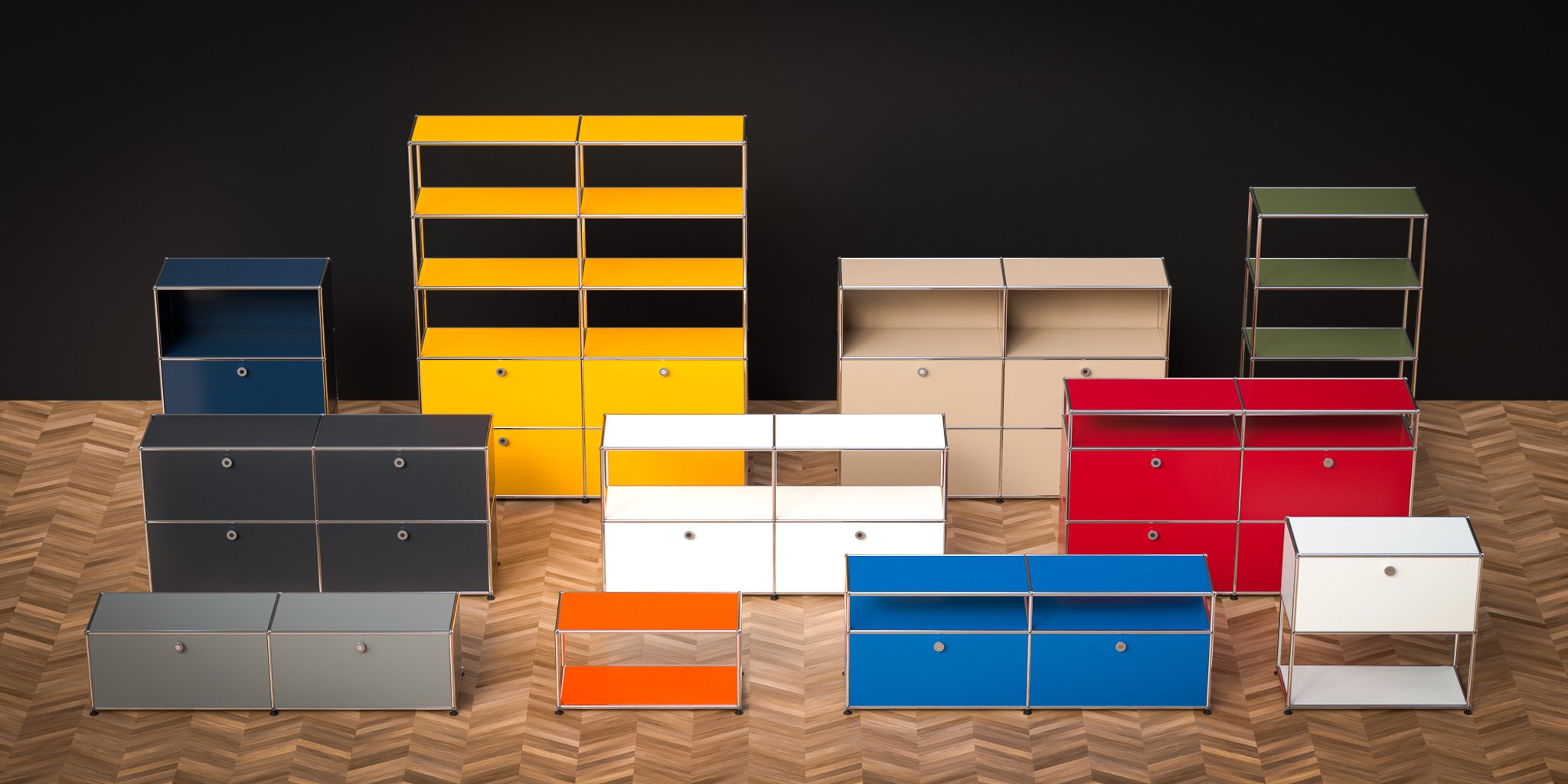

One setup.
Endless sideboards.
